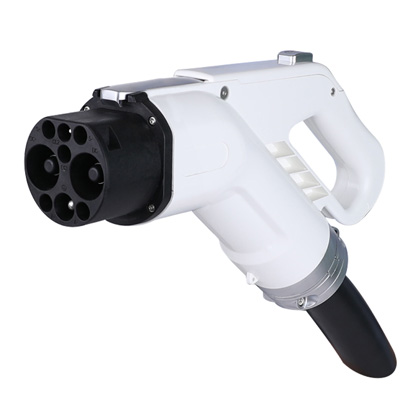

第四款国标直流充电枪

应用领域:

下载手册

产品参数:

□ 额定值电压电流 Rated Voltage:1000 V DC

□ 稳定感应电流 Rated Current:80A/125A/200A/250A

□ 绝缘层电容 Insulation Resistance:≥500MΩ

□ 耐输出功率 Withstand Voltage:3500V AC

□ 机戒保修期Mechanical Lifetime:≥10000 cycles (no-load)

□ 插拔力 Insertion and Separation Forces:F<140N

□ 抗氧化平衡等级Protection Degree:IP67

□ 大环境水温 Operating Temperature:-30℃~50℃

□ 湿球温度 Operating Moisture:5%~95%(40℃)

□ 防火分等级分等级 Flame Retardant Grade:Ul94 V-0

□ 锁止医院类行Type of Locking Mechanism:电动马达锁 electric motor
